THE FINGER LAKES: STANDARD © 1 Tree 2 Post Treehouse Plan
THE FINGER LAKES: STANDARD © 1 Tree 2 Post Treehouse Plan
The floor space is 128 square feet which may be built into an enclosed treehouse, an open tree platform, or a combination of each.
Included with purchase: Tips, illustrations, and step-by-step instructions. These plans may be printed on regular 8.5x11 paper.
Plans DO NOT Include Hardware. Shop the compatible hardware kit here
Hardware is specified, and the plan describes suggested siding or roofing materials. Still, you can substitute as desired - if you want our advice on which specific bolts you need based on your tree species or design load, please contact us.
Specialty Treehouse Hardware Needed:
-
Qty 2 - TAB 1x9 bolts
-
Qty 1 - 1-1/4" Pipe Bracket
-
Qty 4 - 5/8" Carriage Bolts w/flat washers, lock washers, and nuts
- Qty 1 - Double Knee Brace Bracket
NOTE:
- The number of supports under our platforms will vary depending on the size of your kit.
- After you complete your purchase, a separate email containing a link to download your plans will be sent to you. Please check your junk or spam email folders if you don't see them.
- This plan is a digital product only. Hardware and lumber are not included.
- All plans are non-refundable.
-Some photos were customer supplied and may not fully represent the plans. The renderings will always be an accurate representation of what the plans will include.
Do treehouse plans come with the kits?
No. Our treehouse plans and hardware kits are sold separately. Why is that? We wanted to give our customers more flexibility and keep the costs in check. Some folks already have their own plans or have purchased plans in the past, so we want to make sure they have the option to just grab the hardware they need. Plus, certain hardware kits work with multiple plans, so selling them separately guarantees you can get exactly the treehouse plan you want. It's all about giving you the freedom to build your dream treehouse your way!
Do treehouse plans come with a material list?
Absolutely! All our treehouse plans come with comprehensive material lists. However, some of our plans are designed to span between multiple trees so a full material list will have to be complied based on your specific tree span. Please keep in mind that accounting for waste and potential mistakes may affect the exact amount of materials you need. Additionally, our plans are designed to be versatile and work with different tree sizes. If you have a larger or smaller tree, the material count might vary slightly. For precise board counts, customization is available through our custom design services. Our material lists are useful, and if you find anything missing, shoot us an email, and we'll provide the answers you need.
Do we have Airbnb rental treehouse plans?
Looking to create a treehouse rental for Airbnb? While we don't have ready-made plans for large rental treehouses on our website, we've got something even better! Rental treehouses often involve larger designs, permits, and customization to meet your specific needs. That's where our custom design services come in. Our talented team will work closely with you to create a jaw-dropping treehouse that meets all the necessary local and state regulations. Offer your guests an unforgettable and unique treehouse experience that will have them booking again and again!
Are the plans pdf files or will they be shipped?
All plans purchased from www.treehousesupplies.com are delivered electronically in PDF format to the email address we have on file with the order. If you happen to buy our plans from other shopping websites, they may require printing and shipping. If you did not receive your electronic plans within 2 hours of purchase, please reach out to us and we would be more than happy to resend them!
How do I access my plans?
Once you make a purchase, the plans will be delivered to your email as PDF files. If you encounter any issues opening them, you might need to install a free PDF reader on your device. If you require the plans in a different format or if you did not receive your electronic plans within 2 hours of purchase, reach out to us, and we'll do our best to assist you.
Looking for custom plans, not sure where to begin.
Ready to embark on your custom treehouse adventure but not sure where to begin? We offer a range of custom treehouse design packages tailored to the size and scope of your dream treehouse. If you're not sure which package suits your needs, no problem! You can kickstart the process by purchasing an initial consultation. Not only will this get the ball rolling, but the cost of an initial consultation can also be applied to any treehouse design package you choose. Still not sure if a custom package is right for you? Reach out to us, and our team will be more than happy to assist.
Do treehouse kits come with wood/ how much wood is needed/lumber list?
Our kits do not come with lumber. They come complete with our specialty—custom treehouse attachment hardware that will take your project to the next level. Not sure what lumber you will need? All of our plans (sold separately) come with a comprehensive lumber and materials list. You can take this list to your local lumber yard or hardware store to get a quote. Sourcing lumber locally not only saves you money on shipping but also allows you to support local businesses while sourcing sustainably.
Estimate of the wood cost for projects
Lumber prices vary greatly depending on location, supply, demand, and time of year. Because of that, we cannot estimate the cost of lumber accurately. To ensure you get the best estimate, we recommend purchasing our treehouse plans. Once you have them in hand, take a trip to your local lumber yard, where you can get an accurate quote based on your specific project needs. But hey, we understand that sometimes you just want a rough idea upfront. So, here's a ballpark method to help with your budgeting: Count the number of sheets of exterior plywood siding, consider around 1.3-2 studs per lineal foot of wall, tally up the deck boards or plywood sheets for the floor, and don't forget to include beams and floor joists. Then add an extra 50-100% for incidental pieces. You can then check your local prices for lumber. It's a handy way to get a rough estimate before diving into the full plan purchase.
How to know what treehouse plan or kit is right for me
The best way to ensure you choose the right treehouse plan or kit is to contact our customer service through the website. Our dedicated team is here to assist you in finding the correct products, free of charge. If you require a custom design or an adaptation for your specific trees, we offer affordable initial consultations or full treehouse design service packages to cater to your unique requirements.
What is the minimum tree diameter for your treehouse kits?
When it comes to single-bolt installations, we generally recommend a minimum tree diameter of around 11" to 12". However, for designs with multiple bolts in a tight area, we suggest a minimum diameter of 16". There are a few issues to consider related to single tree sizes.
- Floor Space: Extremely large trees may not pair well with small tree platforms. For example, an 8' octagon treehouse plan built on a 36" diameter tree would only have 30" of deck space, which can feel narrow.
- Rotation: All single tree platforms experience some rotation, especially when the platform size-to-tree size ratio is high. A 16' wide platform on a 16" tree will rotate more than on a 32" tree.
- Bolts Crashing: Certain designs requiring two TABs set at the same height, in line, on opposite sides of the tree, may experience "crashing" of the TABs in the 14" to 18" diameter range. Staggering the TABs horizontally or vertically can help reduce this possibility.
But, if you're working with a smaller tree, you do have options! After you purchase your plan and review it, reach out to us! We can then hop on a call to discuss any necessary hardware adjustments or provide alternative installation instructions based on your unique situation
Do we design freestanding raised treehouses?
Absolutely! Our full-service treehouse design department can create custom designs tailored to your preferences. We can adapt any of our treehouse plans for ground support or create entirely new plans to meet your requirements. Explore our custom treehouse design options on our website or contact us for a complimentary call to discuss your needs.
I just purchased custom design time, what’s next?
Once you've purchased custom design time, we will connect you with one of our designers to schedule your initial consultation. Typically, this work takes place Mon-Fri 8:30 AM – 4:30 PM EST. So, if you purchased on a weekend, we will reach out to you on the coming Monday. If you purchased engineering or another custom design package, we'll connect you with the appropriate expert to address your specific needs and concerns.
- This plan is a digital download. It will be emailed to you and is available for download once you have completed checkout.
Compatible with

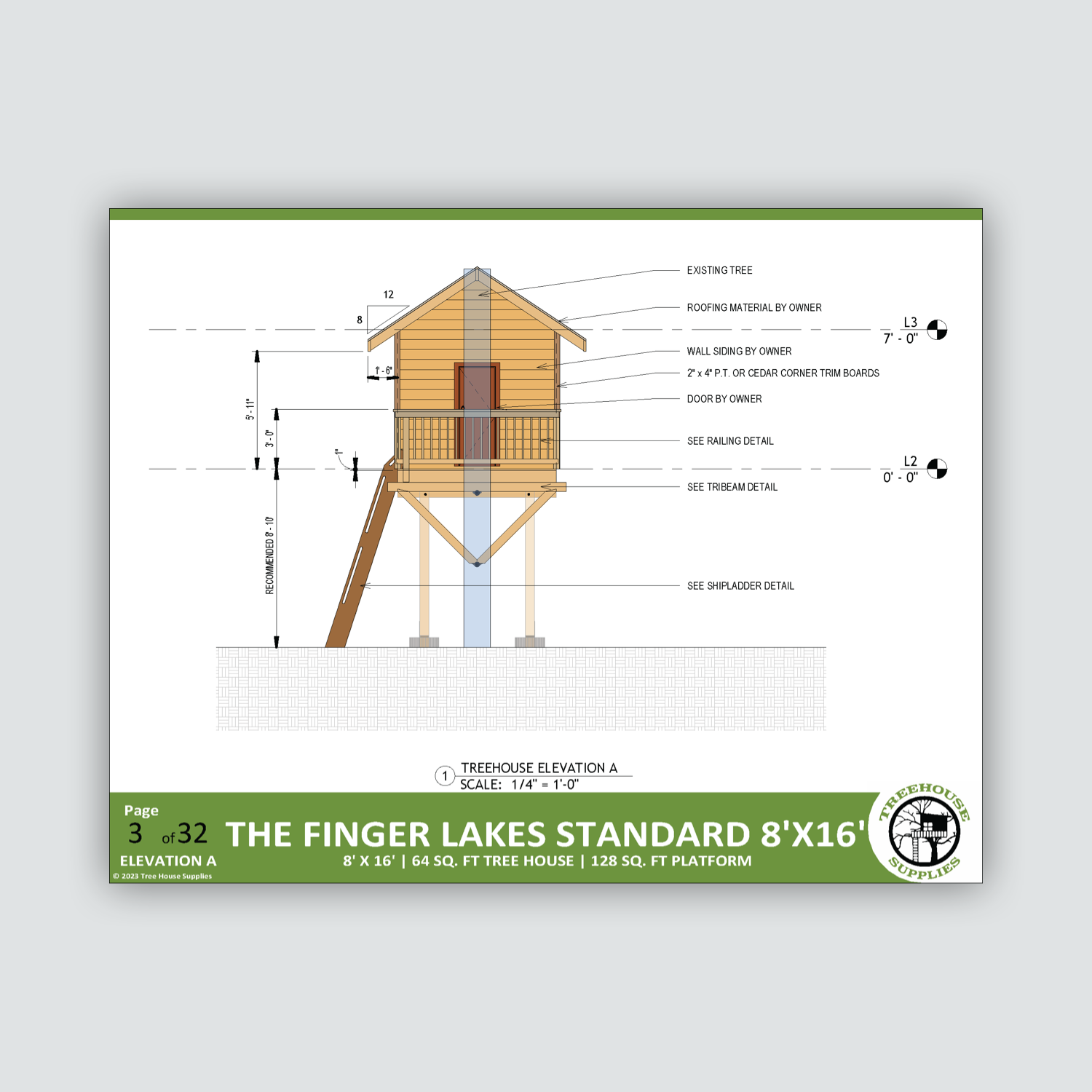

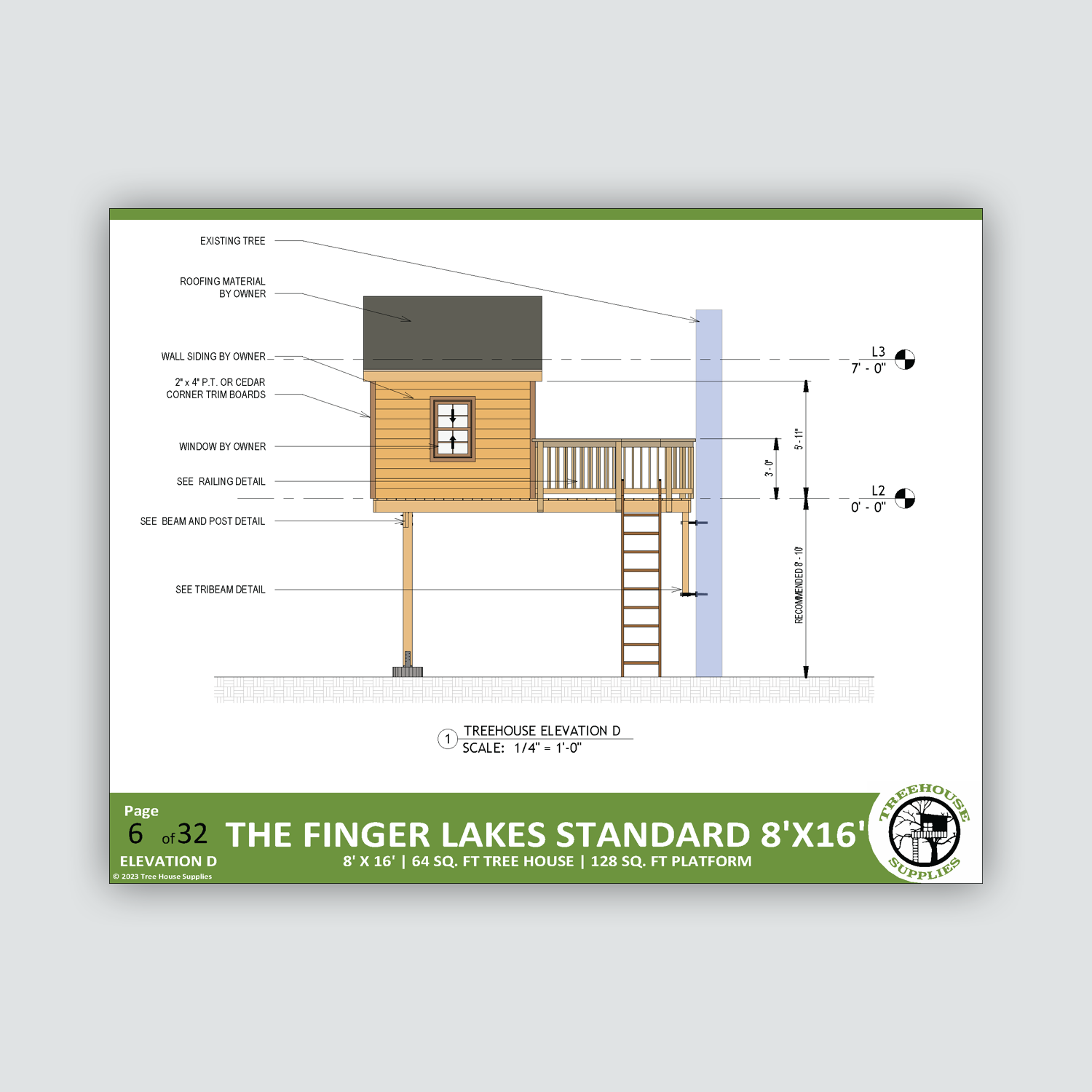

These plans contain CAD images and instructions to help you build your own treehouse. There are eight pages of main plans and seven optional detail sheets to help with trap doors, ladders or stairs, climbing walls, etc... If you have any questions after reading them, you may contact us for extra support. We're here to help!
The real trick of treehouse building is attaching treehouses to the trees without killing them or doing excessive damage. So the emphasis of our treehouse plans is the platforms. What you do above the platform is something many carpenters and skilled do-it-yourselfers can be creative with. We make suggestions but generally keep the railings and siding basic - please feel free to customize the materials according to your taste and materials budget. Our treehouse plans can be modified through our custom design process to fit your trees. There are additional hourly fees for this service. Please visit our custom treehouse design page for more information on custom treehouse plans.
